An intermittently bonded ribbon production system is used to manufacture flexible fiber groups for contemporary, high-count cable architectures. It ensures fibers are aligned for expedited mass fusion splicing, yet allows the fiber group to remain flexible within a compact cable core.

In contrast with fully bonded ribbons, intermittent bonded ribbons feature discrete bonding points at predetermined intervals. This strategic placement enables the fibers to maintain alignment while the ribbon can flexibly roll into circular loose tubes and other confined spaces.

Fiber network engineers apply this technique when faced with constraints in duct space, splice closures, and equipment racks. A meticulously crafted ribbon cable facilitates dense network deployments in data centers, telecom backbones, metro networks, FTTx feeder systems, and 5G transport networks.




Key Takeaways

  • A bonded ribbon production system supports compact and flexible fiber layouts.
  • Separated bond points maintain optical fiber order without creating a rigid ribbon.
  • Flexible ribbons support higher fiber counts within small circular cable constructions.
  • Consistent fiber alignment makes mass fusion splicing quicker and easier.
  • Ribbon technology is used across data centers, telecom routes, and optical access networks.

Intermittently Bonded Ribbon Production Line Overview

Intermittently bonded ribbon manufacturing allows the creation of fiber designs that harmonize density with practicality. This method involves forming bonds at planned positions, allowing for the movement of fiber subunits between these points.

The method enables the incorporation of a higher number of fibers within constrained duct spaces. It also helps maintain the organized ribbon structure, essential for efficient splicing and cable assembly processes.

What Is An Intermittently Bonded Optical Fiber Ribbon?

An intermittent bonded fiber ribbon connects adjacent fibers at specific intervals along its length. The segments between these bonds are left flexible, enabling the ribbon to adopt various configurations without rigidification.

This configuration is often referred to as a rollable, flexible, or spider web ribbon. It differs from the conventional flat ribbon cable, which maintains a fixed profile along its entire length.

During splicing, the fibers can be arranged into a flat ribbon for mass fusion operations. In cable production, the same fibers form compact bundles, optimizing space utilization within the cable.

Why High-Density Fiber Networks Need Flexible Ribbon Technology

Network architects face the challenge of increasing capacity within densely populated conduits, data centers, and access routes. The flexible nature of a flat cable structure helps ribbon groups pack into smaller cable cores, preserving fiber order.

The fiber density ratio is a critical metric for network builders, comparing the space occupied by fibers to the total cable area. Intermittent bonding enhances this ratio, allowing ribbon groups to occupy available spaces within the cable.

For field installation teams, high-density fiber cables reduce the number of cables required for a given route. This design also supports high fiber counts without necessitating a rigid ribbon stack.

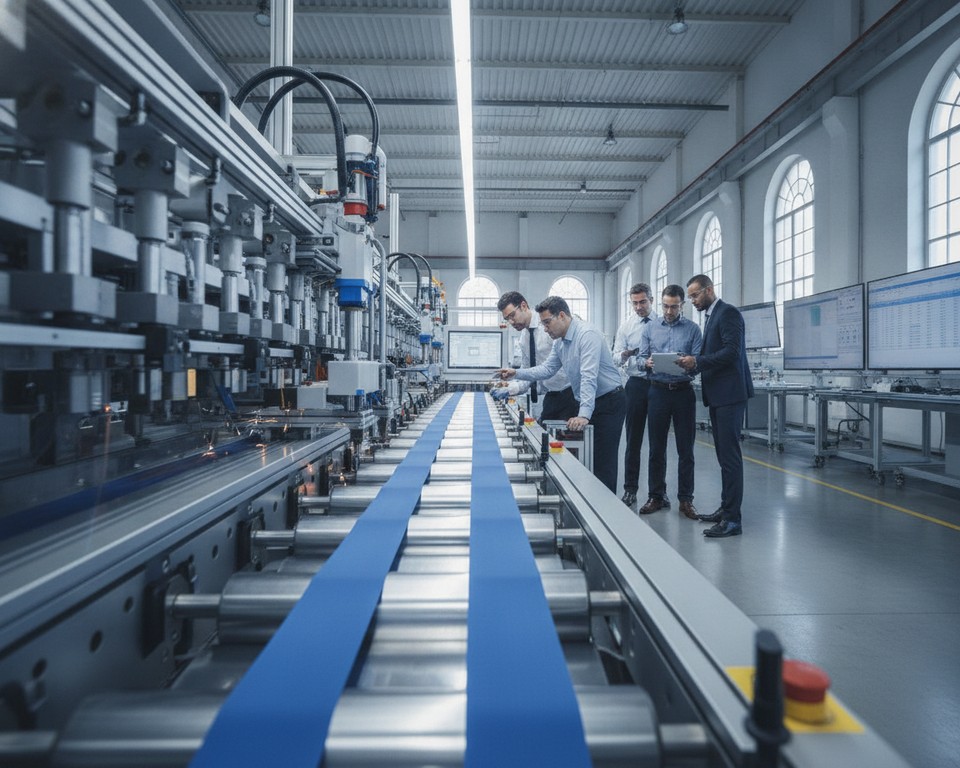

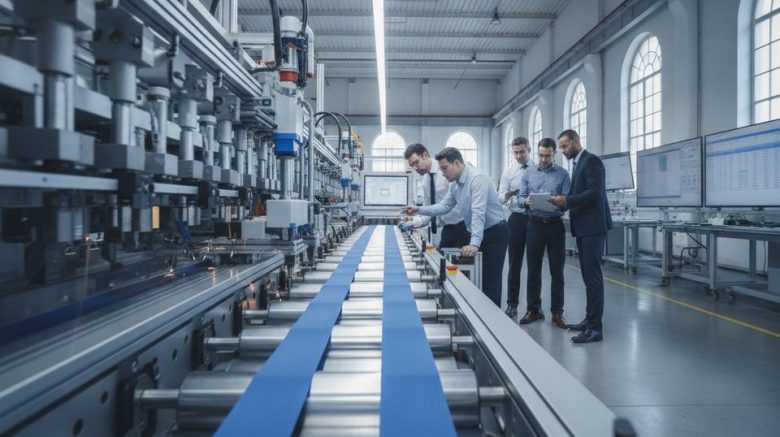

Intermittent Bonded Ribbon Production LineIntermittent Bonded Ribbon Production Line

Ribbon Design Feature Intermittently Bonded Design Conventional Continuous Ribbon
Bonding pattern Discrete bonds at predetermined intervals Bonding maintained continuously along the ribbon
Fiber shape between bonds Can bend, roll, or fold for dense packing Remains predominantly flat and planar
Splicing position Can return to a flat format for mass fusion splicing Is continuously maintained in a flat ribbon shape
Cable packing role Allows compact and flexible subunit positioning Uses a more rigid ribbon stack arrangement
Typical cable application Flexible flat cable and high-density fiber cable designs Standard flat ribbon cable designs

Intermittently Bonded Ribbon Materials And Construction

A flexible bonded ribbon integrates precise fiber placement with adaptable bonding points. Its architecture facilitates dense cable configurations while allowing effortless separation during handling, routing, and splicing.

The selection of materials significantly influences ribbon width, peel characteristics, and durability. Each optical fiber subunit must hold its fibers securely without imparting undue stiffness to the ribbon.

Fiber Count And Subunit Arrangement

Intermittently bonded ribbons can contain 4, 8, 12, 24, or up to 36 fibers. The choice of fiber count is determined by cable capacity, available duct space, and the requirements of subsequent mass fusion splicing.

A 12-fiber ribbon commonly uses six subunits, with two adjacent fibers in each subunit. The fibers within a subunit may be in contact or separated by no more than one and a half times the fiber diameter.

Small gaps placed between subunits ensures ribbon flexibility. These gaps typically span from 5 to 100 micrometers, while the fibers remain aligned side by side across the ribbon width.

Ribbon Construction Element Typical Arrangement Process Purpose
Ribbon fiber count 4, 8, 12, 24, or up to 36 fibers Aligns fiber count with cable density and splice capacity
Fiber subunit layout Pairs of adjacent fibers within each subunit Maintains predictable separation between subunits
Fiber spacing in a subunit Fibers touching or separated by up to 1.5 diameters Maintains a compact and stable profile
Subunit separation gap A typical range of 5 to 100 micrometers Allows greater movement and flexibility near bond points

UV-Curable Resin With Wet-On-Wet Bonding

The coating and bond systems frequently employ UV-curable resin systems. Wet-on-wet bonding involves applying the bond material to the uncured subunit coating, which then cures together under UV energy.

This process creates a diffusion zone where the materials interact. For intermittent bonded ribbons, this zone can range from 2 to 50 micrometers, with 5 to 15 micrometers being the typical focused process range.

UV-curable resin materials can blend at the interface before curing. This facilitates molecular entanglement between the bond and the optical fiber subunit coating, resulting in bonds that are both secure and flexible.

Core Equipment In An Intermittent Bonded Ribbon Production Line

A fiber ribbon line integrates advanced motion control with meticulous material handling. Each station ensures fibers remain aligned, clean, and stable from the initial payoff to the final winding.

The line equipment manages adjacent fiber placement, subunit coating, intermittent bonding, UV curing, cooling, inspection, and take-up. This sequential process enables manufacturers to produce flexible custom ribbon cable, preserving the integrity of the fiber order.

Fiber Payoff And Tension Control System

Fiber payoff units supply individual optical fibers at a consistent rate from spools. Guides, rollers, and tension sensors prevent sudden pulls, averting twist, slack, or uneven spacing.

Within a fiber ribbon production line, maintaining balanced fiber paths before alignment is critical. Stable tension is essential for forming flat subunits and ensuring accurate color sequence control.

Discrete Bond Applicator And Coating Die

The coating system applies a UV-curable material around groups of two or more fibers. This material defines subunits while maintaining fibers in a flat, parallel layout.

The discrete bond applicator subsequently deposits a second resin between neighboring subunits at planned intervals. This spacing allows the ribbon to flex and separate when needed, a critical aspect of custom ribbon cable design.

Equipment Core Function Process Benefit
Payoff and tension unit Feeds fibers at controlled tension Minimizes twisting and uneven fiber loading
Coating die Creates coated optical fiber subunits Maintains consistent subunit shape and width
Bond deposition applicator Applies resin at controlled intervals Forms flexible connections between neighboring subunits
UV curing, cooling, and take-up unit Cures, cools, inspects, and winds the ribbon Protects bond quality and preserves fiber order

Ribbon Take-Up, Cooling, And UV Curing Equipment

UV lamps cure the subunit coating and intermittent bonds while the resin is wet. This wet-on-wet process forms a cohesive interface between materials, influencing bond strength.

The cooling stage lowers ribbon temperature before inspection and winding. The fiber ribbon line may also employ vision checks to monitor width, bond position, and surface quality.

Take-up equipment winds the finished ribbon with low, even tension. Proper winding preserves the finished bonded structure, ensuring the custom ribbon cable is ready for later cabling, splicing, or connector assembly.

Fiber Preparation, Alignment, And Color Sequence Control

The foundation of a stable ribbon cable with fiber preparation. Each strand must enter the assembly clean, centered, and in the correct sequence before the coating and bonding processes commence.

Fiber Identification Management For Splicing And Maintenance

A clearly defined fiber color sequence is indispensable for splicing, testing, and maintenance operations. The standard 12-fiber sequence, typically consisting of blue, orange, green, brown, slate, white, red, black, yellow, violet, rose, and aqua, facilitates swift identification.

With higher fiber-count cables, the sequence may be repeated within controlled subunits. This method ensures that each ribbon cable remains organized within splice trays, closures, and cable connector layouts.

Fiber Number Fiber Identification Color Process Purpose
1 Blue Starts the standard fiber color sequence
2 Standard orange Provides rapid visual identification
03 Standard green Maintains the specified planar order
4 Brown Supports confirmation of subunit position
5 Standard slate Creates a clear mid-sequence identifier
06 White Improves visibility during inspection
7 Standard red Supports accurate splicing records
08 Black Helps technicians recognize sequence position in trays
9 Yellow Aids field restoration work
10 Violet Separates late-sequence fibers clearly
Position 11 Rose Supports high-count ribbon identification
12 Aqua Marks the final position in the standard color order

Avoiding Fiber Twist And Tension Imbalance

Fiber guides and payoff units are important in maintaining fibers in a flat, side-by-side configuration. This prevents twist, crossing, and gaps that could alter the ribbon’s width or distort the bond pattern.

Operators closely monitor tension across every path before the fibers reach the coating die. Proper alignment is critical for mass fusion splicing and ensures the finished ribbon cable fits its intended cable connector system.

UV Curing And Intermittent Bond Application Process

The intermittent bonding process joins fiber subunits without solidifying the ribbon into a rigid form. This method facilitates compact routing and ensures dependable handling within a flexible flat cable. It also aids in maintaining the planned fiber layout during subsequent cable assembly.

Applying Intermittent Bonds At Predetermined Intervals

Bond applicators place resin at intervals ranging from 10 mm to 1,000 mm. The bond locations may stagger along the ribbon’s length. This arrangement provides support to adjacent subunits while allowing sufficient free length for movement.

The bond applicator delivers a measured amount of UV-curable resin at each bond point. Bonds often exhibit a diamond-like shape, with wider centers and narrower ends. The tapered ends help minimize localized stress changes when the cable bends or twists.

Building Strong Yet Flexible Bond Interfaces

The wet-on-wet method involves applying a second material before the first subunit coating cures. The uncured layers can blend before undergoing a shared UV curing step. This approach fosters a gradual interface, unlike a sharp material boundary.

This gradual interface influences various properties, including color, Young’s modulus, and surface friction. Bond ends may feature saddle-like surfaces with both convex and concave curves. These features improve resistance to bond peeling while facilitating separation when required.

Managing Curing Performance

The UV lamps must supply consistent energy across the ribbon. Factors such as line speed, lamp output, resin volume, and exposure time impact the bond’s quality. Selecting the right UV-curable resin ensures rapid curing without compromising the fiber coating.

Process personnel carefully track bond shape, cure level, and ribbon flexibility during production. The cured cable should transition smoothly from a flat plane to various forms without bond damage. Controlled curing ensures consistent handling throughout winding and downstream processing.

Quality Control For Flexible Flat Cable And Fiber Ribbon Output

Verifying every flat ribbon cable is a meticulous process. It involves checking the cable’s flexibility and its readiness for subsequent splicing operations. During production, operators assess the fiber count, color sequence, and precise positioning of each fiber. They also evaluate the cable’s winding condition, ensuring its optimal state for assembly.

Regular inspections are critical in identifying any defects in the coating, uneven tension, or misplaced bonds. These issues, if left unaddressed, could compromise the cable’s performance in subsequent stages of production.

Bond Spacing, Ribbon Width, And Thickness Inspection

Bond spacing remains a critical parameter, requiring adherence to a specific design range. This spacing is essential for the cable’s flexibility, ensuring that the fibers remain aligned within their designated subunits during bending.

Inspection procedures are used to confirm that each bond correctly connects adjacent subunits. This attention to detail ensures that the ribbon lays flat, facilitating smooth mass fusion splicing processes.

Quality Control Point Items Checked Quality Benefit
Fiber identity Fiber number, color order, and placement Helps ensure accurate splicing and maintenance
Bonding pattern Bond position, interval, and connection between subunits Maintains flexibility and fiber organization
Ribbon profile Dimensional width, thickness, and flatness Supports compatibility with handling and splice equipment
Finished surface quality Cure quality, coating completeness, and visible defects Reduces handling damage during winding

Optical And Mechanical Ribbon Testing

Mechanical assessments focus on bond separation, cohesive strength, elongation, and handling behavior. These evaluations are essential to confirm that the manufacturing process controls are consistent across similar designs of flat cables.

Optical testing includes evaluations after bonding and curing. It ensures that the core, cladding, primary coating, secondary coating, and color layer are adequately protected throughout the manufacturing process.

Optical attenuation checks and handling evaluations are integral to routine inspections. The quality of winding is also scrutinized to ensure that the finished flat ribbon cable is in a controlled condition for assembly.

Production Automation, Efficiency, And Precision Winding

Efficient ribbon manufacturing depends on a unified production line. Each stage, from fiber payoff to inspection and take-up, must harmonize seamlessly. This synchronization ensures the preservation of fiber geometry and facilitates consistent output, critical for high-speed data transmission cables.

Line Synchronization And Process Data Monitoring

Production controls coordinate payoff speed, fiber tension, resin delivery, bond placement, UV curing, cooling, and take-up. Adjustments are made in real time to maintain ribbon stability when speed variations occur at any station.

Production records meticulously document fiber color sequences, bond intervals, cure settings, ribbon dimensions, and winding status. This detailed history allows operators to track the production of each custom ribbon cable.

  • Payoff tension prevents fiber stretch and slack.
  • Accurate bond timing keeps discrete joints evenly spaced.
  • Dimension monitoring identifies width and thickness variations quickly.
  • Winding records support lot traceability and downstream handling.

Winding Ribbon For Downstream Cable Production

A cable precision winder ensures the ribbon is wound onto a spool with uniform tension and controlled movement. This method prevents edge crushing, layer crossing, and sudden pulls during subsequent cable processing.

Finished ribbon structures may be stacked, rolled, or loaded into central tube and loose tube designs. These configurations enable the creation of high-speed data transmission cables, even in areas where duct additions are impractical.

When producing custom ribbon cable, the winding pattern must align with subsequent processes. Proper spool buildup is essential for smooth payout during stranding, tube loading, and cable assembly.

Monitored Area Process Control Focus Resulting Benefit
Optical fiber payoff Stable tension and correct color sequence Consistent ribbon organization during cable assembly
Bonding stage Consistent spacing and resin volume Predictable ribbon flexibility during handling
UV cure stage Stable UV lamp output and cure exposure Reliable bond strength before winding
Cable winding system Even traverse, spool tension, and layer control Smooth payout for central tube or loose tube loading

Ribbon Cable Applications, Fusion Splicing, And Connector Planning

Ribbon fiber plays an important role in dense links within data centers, telecom backbones, metro rings, and FTTx feeder routes. It also excels in indoor FTTH runs, 5G fronthaul, and outdoor point-to-point networks where space is at a premium.

A carefully designed ribbon cable assembly enables crews to manage high fiber counts efficiently, without increasing bulk. Each high-speed data transmission cable must align with the site’s route, enclosure space, and future expansion plans.

Mass Fusion Splicing Advantages

Ribbon fusion equipment enables the joining of an entire ribbon in a single operation. For a 12-fiber ribbon, a matching cleaver can prepare all 12 fibers simultaneously before the automated fusion process commences.

Mass fusion processing lowers handling time and ensures consistent fiber alignment. Splice loss is reported to remain below 0.05 to 0.10 dB per fiber, contingent upon controlled preparation, cleaning, and machine settings.

Loose tube cable, on the other hand necessitates a different strategy at the splice cassette. Technicians must separate the fibers, then splice them individually, which prolongs the ribbon cable assembly process.

Planning Connections For Dense Fiber Links

Multi-fiber links frequently employ MPO or MTP trunks, harnesses, fanout cables, and cassette modules. The chosen cable connector must align with the fiber count, polarity method, connector gender, and fiber type.

Connection planning also includes transceiver requirements and the full link loss budget. A high-speed data transmission cable, when used with parallel optics, demands a clear polarity path from equipment port to patch panel.

Planning Item What It Controls Common Application
Fiber ribbon count Splice capacity and cassette selection 12-fiber and 24-fiber backbone links
MPO or MTP multi-fiber connector Polarity management and equipment port compatibility High-density data center and 5G equipment-room connections
Multi-fiber harness or fanout assembly Transition from multi-fiber connections to single-fiber ports Network switch connections and patch fields
Optical link loss budget Maximum allowable loss through connectors, splices, and cable length High-speed data transmission cable routes

Shanghai Weiye OFC Equipment For Fiber Ribbon Production Lines

Shanghai Weiye OFC Equipment, commonly referred to as SHWY, specializes in machinery for the production of optical fibers and cables, serving markets in the United States and globally. Its offerings are designed to support consistent manufacturing, facilitate clear operator control, and enable seamless integration into production lines.

For projects requiring an intermittent bonded ribbon production line, SHWY equips each phase of ribbon handling, curing, and winding with suitable machinery.

SHWY Experience In Optical Fiber And Cable Machinery

Operating since 1998, SHWY’s journey in the industry has been marked by significant milestones. By 2012, its annual turnover surpassed 200 million CNY, strengthening its position within a prominent Chinese fiber and cable conglomerate as a joint venture.

In 2020, SHWY transitioned to independence, relocating to a state-of-the-art facility in central Shanghai. This move underscored its commitment to advancing equipment research, manufacturing, and process application while supporting operational stability.

Relevant SHWY Production Equipment Portfolio

The SHWY portfolio encompasses a diverse range of equipment, including fiber draw towers, coloring machines, secondary coating lines, SZ stranding equipment, and cable sheathing lines. Notably, it also features a fiber ribbon line tailored for flat, high-count fiber formats.

Within ribbon cable production, a cable precision winder plays a critical role in maintaining orderly package buildup and controlled tension. This ensures safer transport and more consistent feeding into subsequent cable production stages.

The broader SHWY portfolio also includes FTTH lines, indoor cable equipment, and OPGW fiber-in-stainless-steel-tube systems. These options enable manufacturers to integrate an intermittent bonded ribbon production line with complementary cable processes.

Final Thoughts

An intermittent bonded ribbon production line integrates fiber alignment, controlled bonding, UV curing, inspection, and precision winding into a unified process. Each step ensures the preservation of fiber order while maintaining the necessary bendability for dense cable designs. This combination is critical for the creation of high-density optical networks.

The resulting ribbon structure provides efficient mass fusion splicing and organized fiber management. It is ideal for applications with high fiber counts, confined ducts, limited tray space, and frequent splice points. This makes it a cornerstone in many high-density ribbon cable routes.

Successful project planning goes beyond the production line. It encompasses the cable structure, closure capacity, fusion tools, test methodologies, labeling, and restoration records. These elements must align with the planned network architecture for seamless integration.
