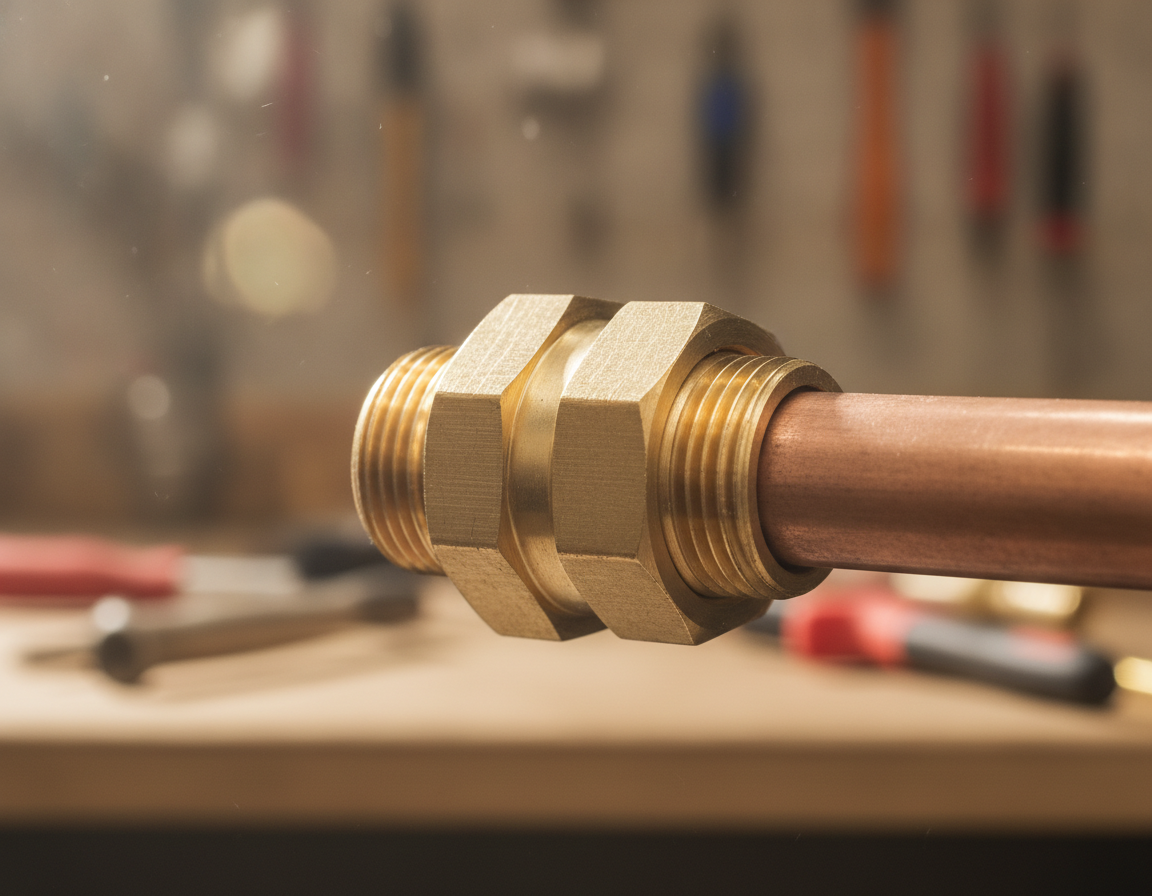

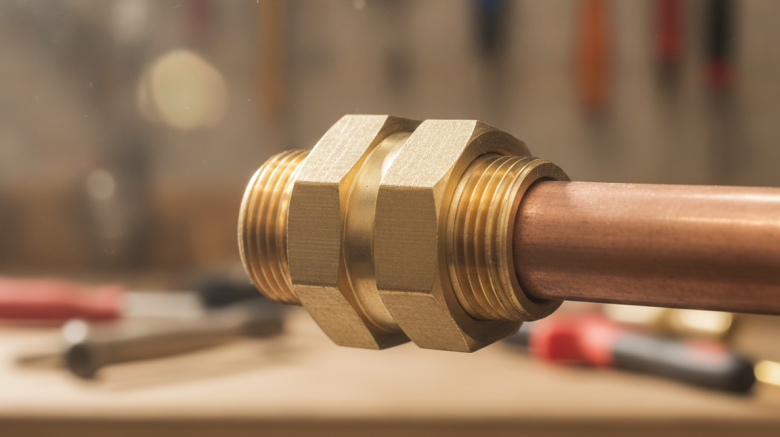

Compression fittings offer a dependable method to join copper pipes, avoiding the need for soldering or torch heat. A Copper Compression Union employs a nut, ferrule, and body to form a secure seal when the nut is tightened with a wrench. This feature makes the Compression Fitting 3/4 and the 3/4 Copper Compression Fitting popular choices among both professional plumbers and DIY enthusiasts.
3 4 Compression Fittings
These unions are adaptable, suitable for both residential and commercial projects, including water lines and instrumentation. Installation Parts Supply often offers 3/4 Compression Fitting Copper and 3 4 Compression Fittings in options such as brass, copper, and stainless steel. As the nut tightens, the ferrule compresses between the tapered body and nut, sealing tubing such as annealed copper or compatible thermoplastic tube.
Essential Takeaways
- A Copper Compression Union joins copper pipe without solder or torch heat.
- Compression Fitting 3/4 and 3/4 Copper Compression Fitting are frequently used fitting sizes.
- 3/4 Compression Fitting Copper and 3 4 Compression Fittings are frequently carried through Installation Parts Supply.
- Brass bodies and ferrules provide durability, strength, and corrosion resistance.
- Wrench-tightening the nut drives the ferrule to form a leak-tight seal.
Understanding Copper Compression Union Design And Components
The Copper Compression Union is a three-piece design that connects tubing without soldering. It is widely used in plumbing, HVAC, refrigeration, gas distribution, and instrumentation. This is because it delivers a tight, compressive seal. The 3 4 Copper Compression Union is popular in residential and light-commercial installations.
Copper Compression Union Uses And Basics
A compression union joins two tube ends by compressing a ring around the pipe as the nut is tightened. It is often chosen for fast service work, service loops, and confined spaces where torch work is impractical. The 3/4 Copper Compression Fitting is ideal for common mains, branch lines, and appliance feeds without brazing.
Body, Ferrule Olive, And Nut Components
The union body contains the threaded section that receives the nut. The ferrule, also called an olive, bites against the pipe and fitting body as the nut is tightened. The nut threads onto the body and delivers the compressive force. Correct ferrule seating is essential for a leak-free joint and dependable field serviceability.
Copper Union Materials: Copper, Brass, Stainless Steel, And Plastics
Brass unions are ductile and corrosion-resistant, which makes them a reliable match for copper pipe in water and gas systems. Stainless steel adds extra strength for high-pressure or high-temperature systems. Copper-to-copper unions provide uniform thermal expansion and fit standard tubing sizes. Plastic ferrules and fittings, like acetal or nylon, appear in low-pressure domestic systems where chemical resistance and nonmetallic connections are desired.
Why Copper-To-Copper Unions Reduce Galvanic Corrosion Risk
Matching metals limit galvanic corrosion risk because similar alloys have closer electrochemical behavior. A copper-to-copper union, or a brass body paired with copper pipe, lowers active corrosion at the connection. Avoid pairing copper with carbon steel or dissimilar metals without dielectric breaks when using a 3/4 Compression Fitting Copper to ensure long-term durability.
Benefits Of Compression Fittings For Copper Pipes
For copper pipe work, compression fittings provide a fast, safe alternative to soldered joints. They remove the need for open flame work, which lowers fire risk around insulation, drywall, framing, or older structures. A Compression Fitting 3/4 can form a dependable seal without heat, making it useful for retrofits and tight locations.
Installation is usually straightforward across many fitting brands. First slide the nut onto the tube, then add the ferrule. Next, insert the tube fully and hand-tighten before a final wrench turn. A 3/4 Compression Fitting or 3 4 Compression Fitting can be fitted quickly in tight crawl spaces and behind cabinets where a torch would be impractical.
Serviceability is a major strength of compression unions. Many tradespeople prefer 3 4 Compression Fittings because assemblies can be loosened or repositioned without cutting pipe. Ferrules may need replacement after disassembly, yet the overall joint often remains reusable, saving time during repairs and modifications.
Compression fittings are appropriate for a wide range of systems beyond household plumbing. They appear in gas distribution, HVAC refrigeration lines, and instrumentation systems where leak integrity and maintenance access matter. When a compact, no-flame connection is needed, a Compression Fitting 3/4 or 3/4 Compression Fitting can be a practical choice.
| Comparison Point | Compression Connection | Soldered Joint |
|---|---|---|
| Heat required | No open flame | Heat required |
| Assembly time | Quick | Moderate |
| Ease of service | Can often be loosened | Not serviceable without cutting |
| Use in tight spaces | High | Low |
| Usual applications | Repairs, gas, HVAC, and serviceable lines | Domestic water, long-term sealed joints |
Choosing The Right Size And Material For Reliable Connections
Ensuring a plumbing joint’s reliability hinges on selecting the correct size and material. Before buying, check both the pipe outside diameter and the fitting designation. Misinterpretation of terms like 3/4 Compression Fitting can cause leaks and costly repairs.
It is important to distinguish between nominal size and outside diameter OD when selecting products. Look for SKU terms such as 3 4 Copper Compression Union or 3/4 Copper Compression Fitting. This ensures the ferrule seats correctly on your copper tubing.
Common SKU keywords to search for
Retail listings and manufacturer catalogs often list parts under various names. Look for clear labeling and adherence to standards. Common search terms include Compression Fitting 3/4 and 3 4 Copper Compression Union. Make sure the product description aligns with your pipe OD or nominal sizing requirement.
Material selection
Brass is often chosen for copper pipe systems because it provides ductility and corrosion resistance. A 3/4 Union Brass or 3 4 Union Brass is suitable for many residential and light-commercial installations.
Copper unions are useful for matching metals, managing thermal expansion, and preventing galvanic action. A 3/4 Compression Fitting Copper provides a same-metal connection suited to refrigeration and conventional plumbing.
Stainless steel is recommended for applications requiring higher pressure or resistance to aggressive chemicals. Compared with brass and copper, it offers higher strength and stronger chemical resistance.
When plastic fittings are acceptable
Acetal or nylon compression fittings may be acceptable for low-pressure domestic water lines or situations where non-conductivity is needed. However, they have restrictions, including lower pressure ratings, lower temperature tolerance, and sensitivity to some chemicals.
Comparing common coupling types
| Fitting Material | Common Use | Relative Strength | Notes |
|---|---|---|---|
| Brass, including 3/4 Union Brass | Water lines, gas service, and general plumbing | Good | Cost-effective, compatible with copper |
| 3/4 Compression Fitting Copper | Refrigeration, plumbing, and same-metal joints | Medium | Best where same-metal compatibility matters |
| Stainless compression material | Industrial or aggressive-fluid applications | Very high | Excellent for harsh industrial applications |
| Plastic, including acetal or nylon | Low-pressure household water lines | Low to Moderate | Useful where non-conductivity matters, but ratings are lower |
Sizing advice
When you see names such as 3 4 Brass Compression Coupling or 3/4 Inch Compression Fitting, confirm whether the listing refers to outside diameter or nominal pipe size. Verify compatibility against manufacturer specifications and, where relevant, approvals from trusted brands such as Dixon.
How To Install A Leak-Free Compression Union
Start with copper tubing that is undamaged. Use a pipe cutter to make a square cut. Remove burrs with a deburring tool, reamer, or fine sandpaper. A smooth, square end is essential to prevent ferrule damage and ensure a reliable seal when installing 3/4 Compression Fittings.
Assemble components in the correct order. Place the compression nut on the pipe with threads facing outward, followed by the ferrule. Insert the pipe fully into the union body until it bottoms out. This step is important to avoid gaps that can cause leaks when using a 3 4 Brass Compression Coupling or a 3/4 Compression Fitting Copper.
Hand-tighten the nut first to align parts. Then, use two wrenches: one to hold the fitting body steady, the other to turn the nut. Follow the manufacturer’s recommended wrench turns past finger-tight. Over-tightening can deform the ferrule or crush the copper tube, which shortens the life of a 3/4 Copper Compression Fitting.
Avoid reusing ferrules. Use a new ferrule and nut for each new compression joint. Avoid installing compression joints in areas exposed to constant vibration or repeated movement. These conditions can loosen fittings like 3/4 Compression Fittings and 3 4 Brass Compression Coupling over time.
Know the pressure and temperature ratings for the chosen fitting. Check product datasheets or packaging before installing. After assembly, restore pressure slowly and inspect the joint for leaks. If minor weeping appears, tighten incrementally. Persistent leaks require disassembly and inspection of the ferrule, nut, and pipe end to confirm correct seating.
Maintenance, Replacement, And Troubleshooting For Compression Unions
Start by turning off the water supply and relieving system pressure. Use two wrenches to support the fitting body while turning the compression nut counter-clockwise. If the nut is seized, apply penetrating oil and allow it to soak before trying to remove it.
How to remove an existing compression union safely
Stabilize the pipe with one wrench and turn the nut with a second wrench. After the nut loosens, slide the nut and ferrule away from the tube end. If the union is old, back off slowly to avoid sudden leaks or pipe damage.
When to replace the ferrule and nut versus the entire union
Replace the ferrule and nut when the fitting body looks sound and the sleeve shows wear or deformation. Replace the full union if the body threads are corroded, leaks continue after new ferrules are installed, or the assembly no longer meets pressure or material requirements.
Signs of failure: weeping, corrosion, or deformed ferrules
Look for weeping at the nut-ferrule interface, green or white corrosion on brass or copper, and crushed or split ferrules. Vibration can loosen unions over time and lead to slow leaks.
Tips to cut out a stuck ferrule without damaging the copper pipe
Carefully score the ferrule lengthwise with a thin rotary blade or hacksaw, then pry it open and remove it. Use a ferrule puller if available. If the tube shows nicks or flattening, recut the end square, deburr, and file smooth before reinstalling a new ferrule and nut.
Compression union versus soldered joints for long-term service life
Soldered joints generally deliver a more permanent seal and often last longer under static conditions. Compression unions are easier to service and require no flame, making them useful for repairs and confined spaces. In systems exposed to vibration or long-term mechanical stress, soldered joints tend to outperform compression fittings.
| Fitting Type | Ease Of Service | Expected Service Life | Best Use |
|---|---|---|---|
| 3 4 Compression Union in brass | Can be opened, but ferrule replacement is often needed | About 5–15 years based on service conditions | Service work, confined spaces, and flame-free jobs |
| 3/4 Union Brass | Serviceable if the body remains in good condition | Typically 5–15 years | Accessible general plumbing repairs |
| 3/4 compression fitting assembly | Short-term serviceable with new ferrules recommended | Varies by material; brass commonly 7–20 years | Quick repairs and installations without solder |
| 3/4-inch compression connector | Easy to fit and remove, but reused ferrules may be damaged | Depends on environment; shorter under vibration | Home plumbing and retrofit repairs |
| 3/4 Compression Fittings soldered comparison | Soldered joints are permanent and not easily serviced | Often 20+ years with proper installation | Permanent pipe runs and high-stress installations |
When sourcing spares, check manufacturers such as Mueller, Nibco, or Watts for compatible 3/4 Compression Fittings and 3/4 Inch Compression Fitting parts. Always verify material compatibility and pressure ratings before reinstalling any replacement ferrule or nut.
Copper Compression Union Summary
Copper compression unions provide a practical solution for joining copper tubing without the need for soldering. When correctly sized and installed, the union body, ferrule, and nut form a tight seal. That makes them useful where heat is impractical or where future serviceability matters.
When selecting materials, consider the application: brass or copper for potable systems to minimize galvanic risk, stainless steel for harsh or high-stress environments, and approved plastics where allowed. A 3/4 Compression Fitting or a 3/4 Copper Compression Fitting will work well if the pipe is cut square, the ferrule is correctly seated, and tightening follows the manufacturer’s guidelines.
Maintenance is easy: inspect for weeping or corrosion, replace ferrules when needed, and avoid overtightening to extend union life. For parts such as a 3 4 Copper Compression Union or 3 4 Union Brass, confirm availability and specifications through Installation Parts Supply. This helps confirm compatibility and correct installation instructions.
